DesignJet T250 24-in Printer

Call for Price

The most affordable Designjet printer
The smallest in its class—where you need it in your work environment

Designjet T250 datasheet

Stock availability change quickly. Please check stock availability with us before placing order online.

SKU: 5HB06H Category: HP DesignJet printer

Description

HP DesignJet T250 24-in Printer

HP Designjet T250 is one of the most compact, also the most affordable of all Designjet printer. It is and ideal entry level printer for: AEC, GIS, and MCAD professionals who want to print maps, technical drawings, posters, and renders with precise, accurate line quality and crisp text.

HP DesignJet T250 Product Specification:

SKU	5HB06H
RINT SPEED
Print speed	30 sec/page on A1, 76 A1 prints per hour[1]
Print speed	30 sec/page on D, 76 D prints per hour[1]
PRINT AREA
Non-printable area (cut-sheet)	5 x 5 x 5 x 5 mm
Non-printable area (cut-sheet)	0.2 x 0.2 x 0.2 x 0.7 in (5 x 5 x 5 x 17 mm)
Non-printable area (roll media)	5 x 5 x 5 x 5 mm
Non-printable area (roll media)	0.2 x 0.2 x 0.2 x 0.2 in (5 x 5 x 5 x 5 mm)
PRINTER SPECIFICATIONS
Functions	Print
Model size	610 mm
Model size	24 in
Internal Storage	None
Line accuracy	±0.1%[3]
Theoretical minimum line width	0.02 mm
Theoretical minimum line width	0.0008 in (0.02 mm)
Printer drivers included	Raster driver for Windows and macOS
Print languages	JPEG, URF
Print technology	HP Thermal Inkjet
PRINTING MEDIA HANDLING
Finished output handling	Sheet feed, roll feed, automatic horizontal cutter
SUPPORTED PRINTING MEDIA
Media sizes, custom	210 x 279 to 610 x 1897 mm
Media sizes, custom	8.3 x 11 to 24 x 74.7 in (210 x 279 to 610 x 1897 mm)
Media sizes supported	A4, A3, A2, A1
Media sizes supported	A, B, C, D
Media thickness (metric)	Up to 0.3 mm
Media types	Bond and coated paper (bond, coated, heavyweight coated, plain, bright white, blueprint), technical paper (natural tracing), film (clear, matte), photographic paper (satin, gloss, semigloss, polypropylene), self-adhesive (adhesive, polypropylene)
Media weight, recommended	60 to 280 g/m²
Media width, maximum	610 mm
PRINT RESOLUTION
Maximum optical density (black)	8 L* min/2.10 D[4]
Print quality color (best)	Up to 2400 x 1200 optimized dpi
BOX CONTENTS
What’s in the box	HP DesignJet T250 24-in Printer, printhead, introductory ink cartridges, spindle, quick reference guide, setup poster, power cord
CARTRIDGES AND PRINTHEADS
Ink drop	5.5 pl (C, M, Y) 12 pl (K)
Ink types	Dye-based (C, M, Y) pigment-based (K)
High capacity of page yield (colour)	20 ml of ink yields 101 A1/D pages, taking into account maintenance routines[2]
Number of print cartridges	4 (C, M, Y, K)
Color(s) of printing supplies	Cyan, magenta, yellow, black
Print cartridge volume delivered	80 ml (K) 38 ml (K) 29 ml (C, M, Y)
Print head nozzles	1376
Print heads	1 (cyan, magenta, yellow, black)
MEMORY
Memory	512 MB
BATTERY AND POWER
Power consumption	<35 W (printing), <5.6 W (ready), <2.1 W (sleep), <0.2 W (standby)
Power	Input voltage (auto ranging): 100-240 V (±10%), 50/60 Hz (±3 Hz), 1200 mA max
WEIGHTS
Weight	21.5 kg
Package weight	28 kg
SOFTWARE AND APPLICATIONS
Software included	HP Click, HP Smart app, HP Print Preview for Windows, HP Easy Start, HP DesignJet Utility for Windows, HP Support Assistant
PRODUCT DESCRIPTION
Product disclaimer	Dynamic security enabled printer. Only intended to be used with cartridges using an HP original chip. Cartridges using a non-HP chip may not work, and those that work today may not work in the future.
More at	http://www.hp.com/go/learnaboutsupplies
PRINTING MEDIA
Media sizes standard (metric rolls)	279 to 610 mm
Media sizes standard (sheets, rolls)	11 to 24 in (279 to 610 mm)
Roll external diameter	100 mm
Roll external diameter	3.9 in (100 mm)
Roll maximum input	1
Roll maximum weight	4.1 kg
Roll maximum weight	9 lb (4.1 kg)
Media thickness	Up to 11.8 mil
Media width, maximum	24 in
Supported Primary Applications	Line drawings Presentations Renderings
Recommended media	Q1396A HP Universal Bond Paper (FSC® certified)[5] (recyclable)[6] 610 mm x 45.7 m (24 in x 150 ft) C6019B HP Coated Paper (FSC® certified)[5] (recyclable)[6] 610 mm x 45.7 m (24 in x 150 ft) C6029C HP Heavyweight Coated Paper (FSC® certified)[5] (recyclable)[6] 610 mm x 30.5 m (24 in x 100 ft)
CONNECTIVITY AND COMMUNICATIONS
Connectivity, standard	Gigabit Ethernet (1000Base-T), Hi-Speed USB 2.0, Wi-Fi 802.11
Print multi-size files in one click	Yes
Remote print enabled	Yes
DIMENSIONS
Minimum dimensions (W x D x H)	1013 x 440 x 285 mm
Package dimensions (W x D x H)	1155 x 575 x 405 mm
WARRANTY
Warranty	One-year limited hardware warranty

Designjet T250 Printer Supplies, Accessories, warranty:

Genuine HP 712 ink cartridges for Desighjet T250
HP 712 29-ml Cyan DesignJet Ink Cartridge	Buy 3ED67A
HP 712 29-ml Magenta DesignJet Ink Cartridge	Buy 3ED68A
HHP 712 29-ml Yellow DesignJet Ink Cartridge	Buy 3ED69A
HP 712 38-ml Black DesignJet Ink Cartridge	Buy 3ED70A
HP 712 80-ml Black DesignJet Ink Cartridge	Buy 3ED71A
Genuine HP 712 ink cartridges 3-pack for Desighjet T250
HP 712 3-pack 29-ml Cyan DesignJet Ink Cartridge	Buy 3ED77A
HP 712 3-pack 29-ml Magenta DesignJet Ink Cartridge	Buy 3ED78A
HP 712 3-pack 29-ml Yellow DesignJet Ink Cartridge	Buy 3ED79A
Designjet T250 Maintenance kit and Accessories
HP 713 Designjet Printhead Replacement Kit	Buy 3ED58A

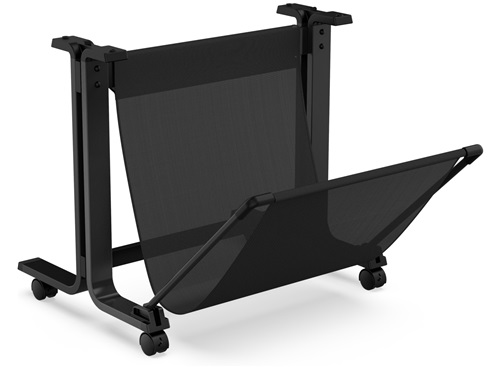

HP DesignJet T200/T600 24-in Stand	Buy 3C753A
HP DesignJet 24-in Spindle	Buy B3Q36A
HP DesignJet T200/T600 Automatic Sheet Feeder	Buy 8AJ60A
HP DesignJet T200/T600 24-in Roll Cover	Buy 9GF94A
DesignJet T250 Extended Warranty
HP Designjet T250 2 year NBD Onsite Support	Buy U06BDE
HP Designjet T250 3 year NBD Onsite Support	Buy U06BFE
HP Designjet T250 4 year NBD Onsite Support	Buy U06BGE
